LSAT Single Crystal Substrate

Name: LSAT Single Crystal Substrate
Brand: Crystro
Price: 1 USD

Brand Name : Crystro

Model Number : CR20200309-3

Certification : SGS

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, Paypal

Supply Ability : 1000pcs/month

Delivery Time : 3-4 weeks

Packaging Details : Carton Package

Polishing : double side polished

Diameter : 2''-3''

Thickness : 0.5mm/1mm

Surface finish : < 10A

Type : Round,Square,Flats

Orientation : <100>,<111>

Coating : AR Coating

Brand : CRYSTRO

Contact Now

LSAT Single Crystal Substrates For Sale

(La,Sr)(Al,Ta)O3, LSAT is a relatively mature non-crystalline perovskite crystal. It has a perfect match with high temperature superconductors and various oxide materials. During a large number of practical researches, it was found that LSAT is promising to replace lanthanum aluminate (LaAlO3) and barium titanate (SrTiO3) for giant magnets and superconducting devices.

We supply (La,Sr)(Al,Ta)O3, LSAT substrate in various size and orientation, Welcome to send us a inquiry for price and specification of LSAT substrate.

The main performance parameters
Growth method	Czochralski method
Crystal structure	Cubic
Lattice constant	a = 3.868 A
Melting point (℃)	1840
Density	6.74 (g / cm 3)
Hardness	6.5 (mohs)
Permittivity	22
Thermal expansion coefficient	10 x 10 -6
Color and Appearance	Colorless to light brown, without crystal-twin
Standard Size	10x3mm, 10x5mm, 10x10mm, 15x15mm, 20x15mm, 20x20mm,
	Ф15mm, Ф20mm, Ф1"(25.4mm), Ф2"(50.8mm)
Standard Thickness	0.5mm, 1.0mm
Polishing	Single or double side polished
Crystal orientation	<100>, <110>, <111> ± 0.5 º
Ra:	≤ 5Å (5μm × 5μm)
Package	100 clean bag, 1000 clean room

Product Tags:

lanthanum aluminate

laalo3 substrate

China LSAT Single Crystal Substrate wholesale

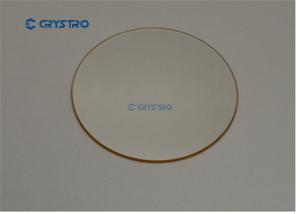

LSAT Single Crystal Substrate Images
